Model Year: 1985
Manufacturer: Honda
Model: VF500C (Magna)

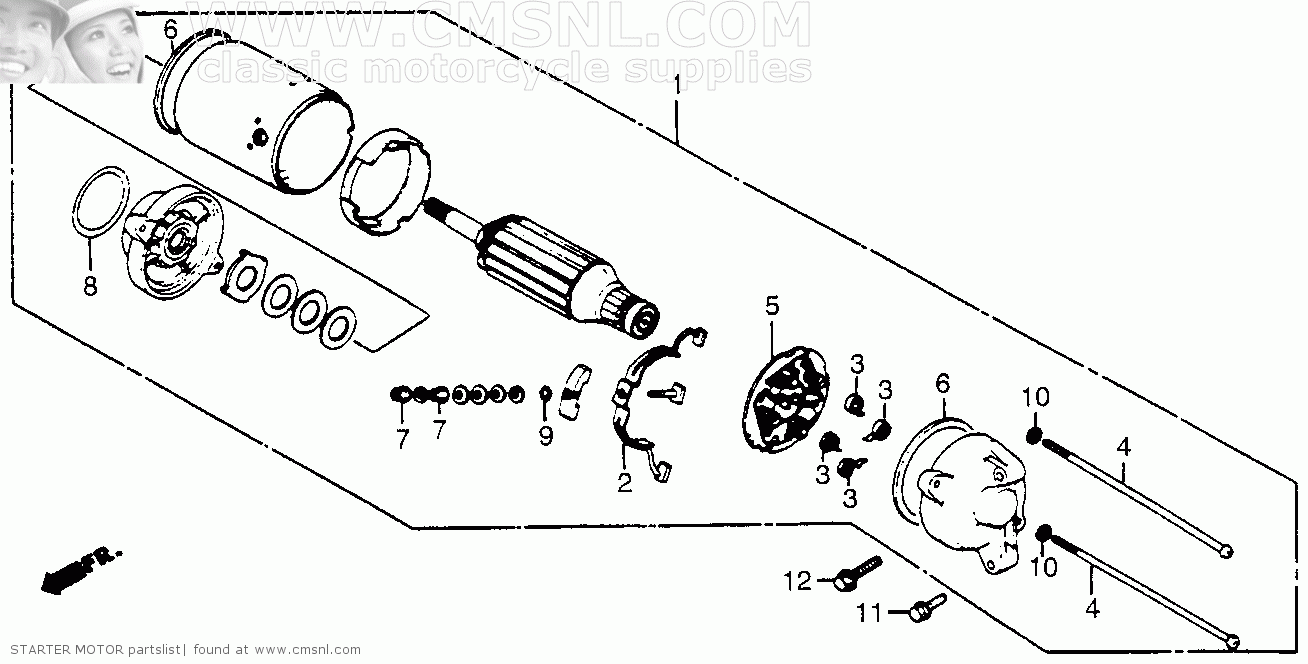

Schematic: StarterMotor
Description: 1985 Honda Magna (VF500C) StarterMotor

Description Honda Part Number Unit Price
 1: (31200-KM3-405) MOTOR,STARTING
31200-KE8-018
Superceded
 1: MOTOR ASSY START
31200-KM3-405
Not Available
 2: BRUSH,TERMINALSET
31201-KG7-000

 3: SPRING,BRUSH
31204-MA6-000

 4: BOLT,START.COVER
31205-413-780

 5: (31206-MM5-008) BRUSH HOLDER SET
31206-KG7-000
Superceded
 6: RING
31207-179-711

 7: NUT-WASHER 6MM
90071-MB0-000

 8: (91312-MG7-003) O-RING,24.4X3.1
91309-425-003
Superceded
 8: O-RING,24.4X3.1
91312-MG7-003

 9: O-RING
91320-MB0-000

 10: WASHER,SPG.,5MM
94111-05000

 11: (96001-060-2507) BOLT,FLANGE,6X25
96000-06025-07
Superceded
 11: BOLT,FLANGE,6X25
96001-06025-07

 12: (96001-060-3507) BOLT,FLANGE,6X35
96000-06035-07
Superceded
 12: BOLT,FLANGE,6X35
96001-06035-07
